MAGNETIC INSPECTION TOOL (Transverse Field Inspection)

The tool is designed for pipeline control using the magnetic flux leakage determination technique with transverse magnetization in pipeline material and longitudinal welds while the inspection tool is moving along the transferred product flow.

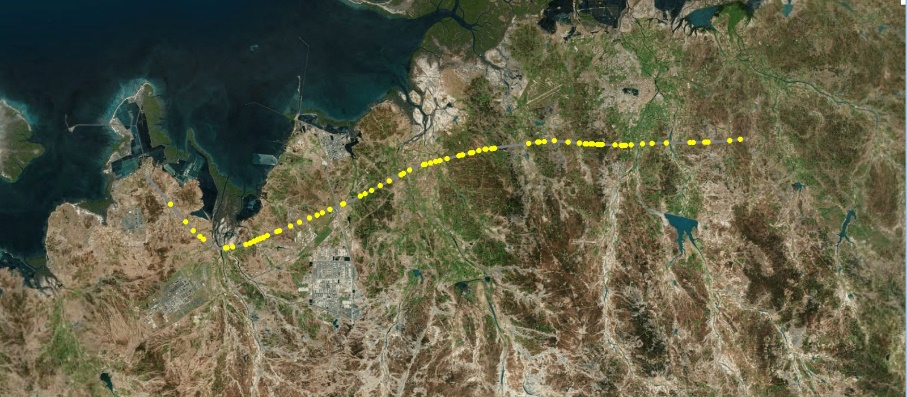

XYZ mapping

“Targeting Defects: Enhancing Inspection Precision”:

  • Corrosion
  • Crack like defects in longitudinal welds & the pipe body
  • Slotting

Tool Specifications and Capabilities:

  • High-resolution Circumferential TFI tool
  • Magnetic Flux Leakage (MFL) Tool diameters range from 6” – 56” (with customized tool development services also available)
  • Minimum bend radius: 1.5D
  • Inspection length: up to 300 km (*Customized solutions available)
  • Temperature range: -15°C to 100°C (*Customized solutions available)
  • Launching medium: liquid/gas
  • Maximum pressure: 100 BAR (*Customized solutions available)

Get in touch today to discover the perfect solution for your pipeline assessment needs.
